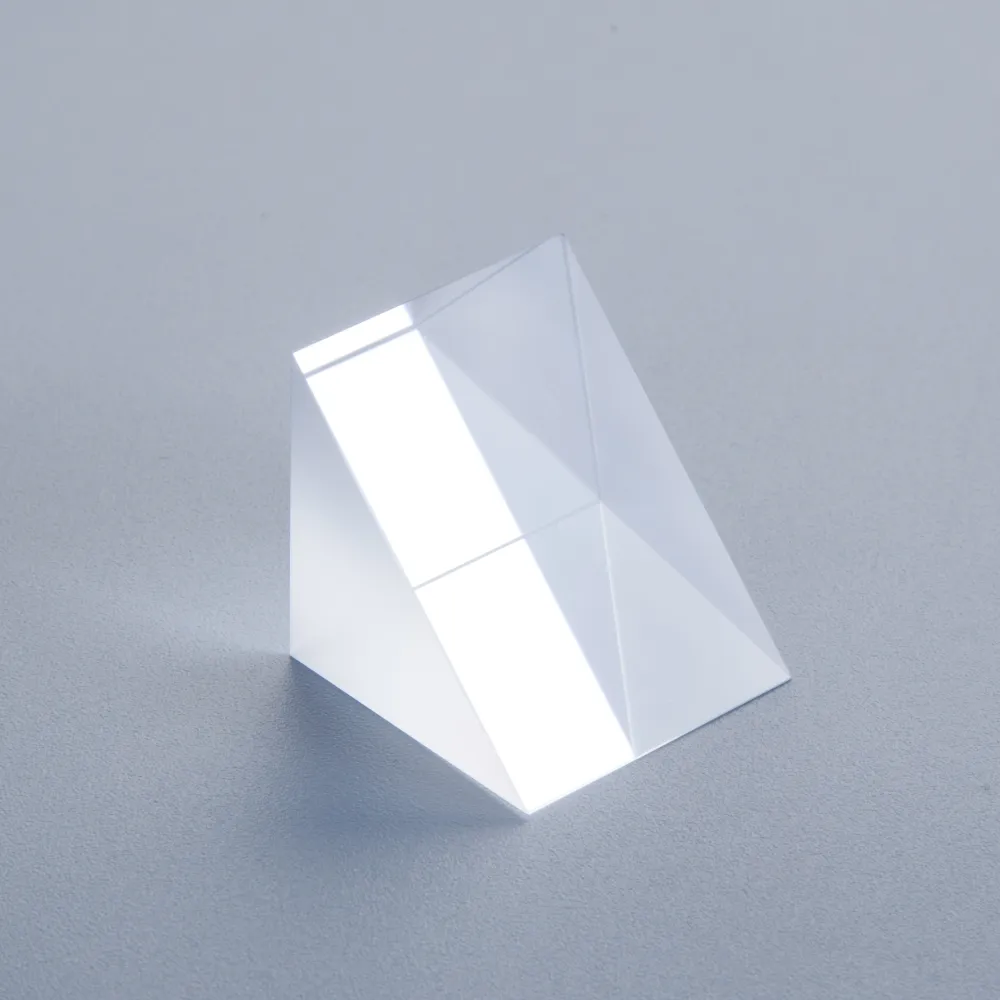

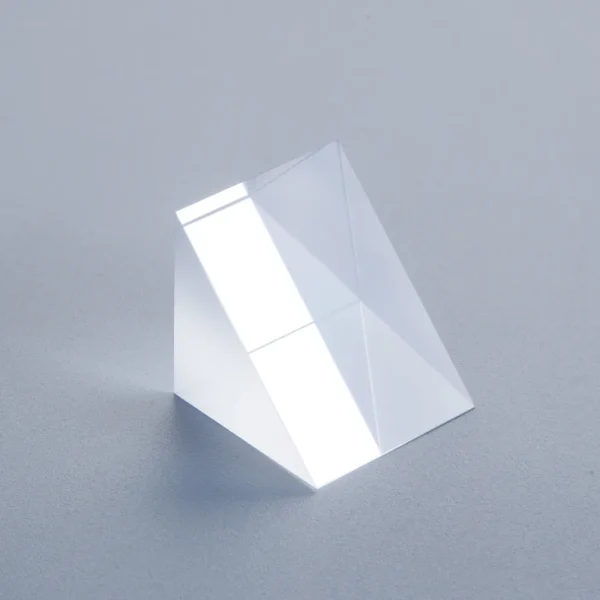

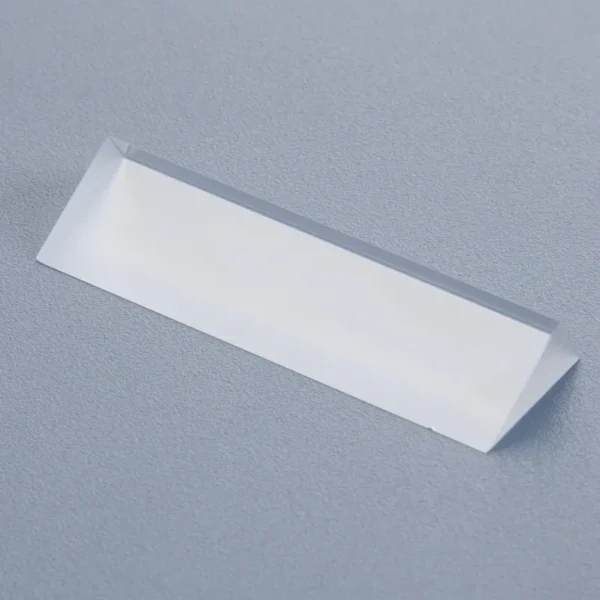

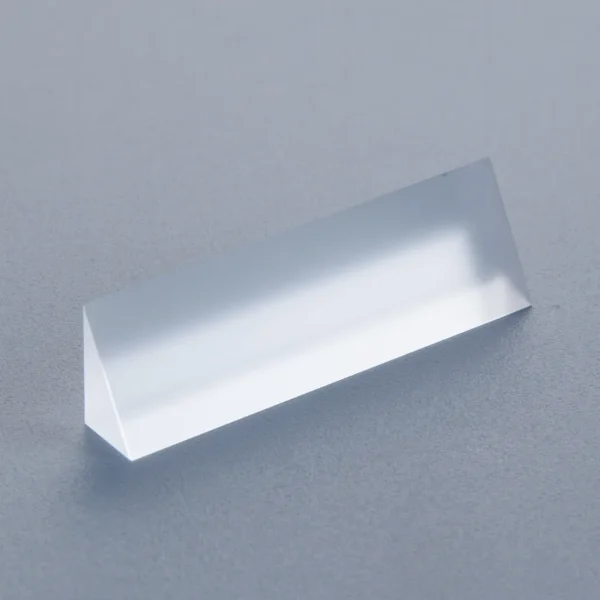

Right Angle Prism

Our right angle prism is a precision optical component designed to redirect light by 90° while maintaining stable beam direction and optical accuracy. It is commonly used in laser systems, surveying instruments, optical measurement equipment, machine vision systems, and other precision optical assemblies.

Manufactured from high-quality optical glass, the prism can be produced with different optical coatings, dimensions, and surface specifications according to the requirements of the application. Jiujon Optics provides both standard and custom right angle prisms for optical instrument manufacturers and system integrators.

Features of Right Angle Prism

• 90° beam deviation for precise optical beam redirection
• Precision-ground and polished optical surfaces
• Optical glass materials such as N-BK7, fused silica, H-K9L and other customer-specified glass from CDGM and SCHOTT
• Available with aluminum, silver, or dielectric coatings according to application requirements
• Custom dimensions and tolerances available
• Suitable for compact optical systems where reliable beam folding is required
• Available with different surface quality and flatness specifications
• Designed for integration into OEM optical assemblies

Optical Performance

A right angle prism uses total internal reflection or a reflective coating to redirect an incident beam. Depending on the optical design, coating requirements, and angle of incidence, the prism can provide stable beam deviation while maintaining good transmission or reflection performance.

The optical performance of the prism depends on several factors, including glass material, surface quality, angular accuracy, flatness, coating type, and wavelength range. These parameters can be selected according to the requirements of the complete optical system.

For applications requiring high optical accuracy, Jiujon Optics can control the dimensional and angular tolerances during precision grinding and polishing. Coating options can also be selected for visible, near-infrared, or other specified wavelength ranges.

Applications

Our right angle prism can be used in a wide range of optical and optoelectronic systems, including:

• Laser levels and laser measurement instruments
• Total stations and surveying equipment
• Theodolites and optical instruments
• Machine vision systems
• Laser alignment systems
• Optical measurement equipment
• Medical and ophthalmic instruments
• Compact laser and imaging assemblies
• Custom OEM optical systems

For surveying and laser instruments, a precision prism can help redirect the optical path while allowing designers to maintain a compact mechanical structure. For OEM applications, the prism can be manufactured according to the optical path, available installation space, and required coating specifications.

Custom Right Angle Prism Manufacturing

Jiujon Optics supports customized optical prism manufacturing for different application requirements. Customers can specify the material, dimensions, angles, surface quality, flatness, coating, wavelength range, and other technical parameters.

Our manufacturing capabilities cover optical glass cutting, grinding, polishing, cleaning, coating, inspection, and final quality control. This allows us to manage multiple stages of the optical manufacturing process and provide components suitable for integration into customer optical assemblies.

If your optical system requires a right angle prism with a specific size, material, coating, or tolerance, please provide your optical and mechanical requirements. Our engineering team can evaluate the specifications and recommend a suitable optical configuration.

Why Choose Jiujon Optics

Jiujon Optics specializes in the development and manufacture of precision optical components, including prisms, lenses, mirrors, optical windows, filters, and reticles. Our products are supplied for applications in surveying and mapping, machine vision, laser systems, medical optics, and other precision optical equipment.

With experience in custom optical manufacturing, we can support both prototype quantities and repeat OEM production. Each right angle prism can be inspected according to the agreed technical specifications before shipment.

Contact Jiujon Optics to discuss your right angle prism requirements, including optical material, dimensions, coating, tolerances, and application wavelength.
