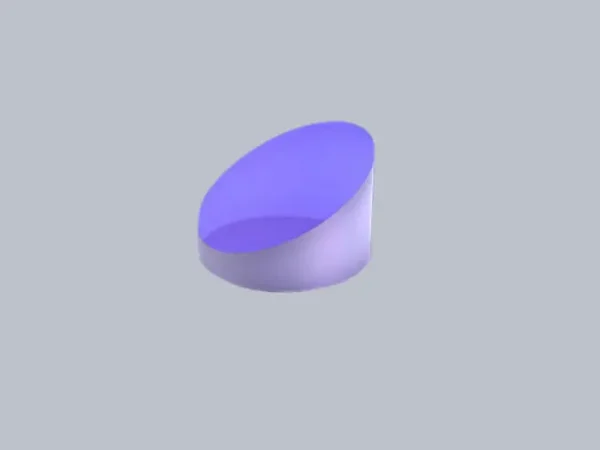

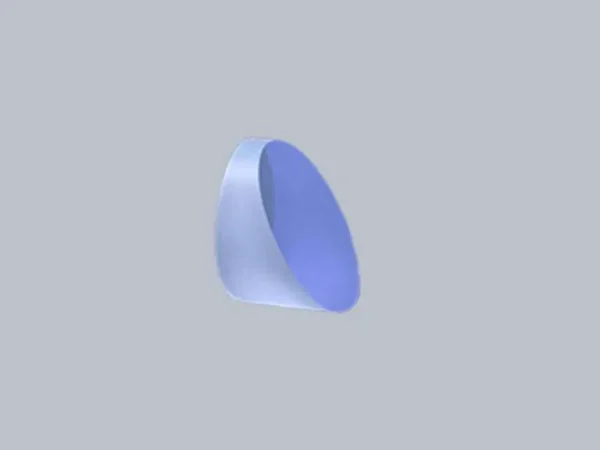

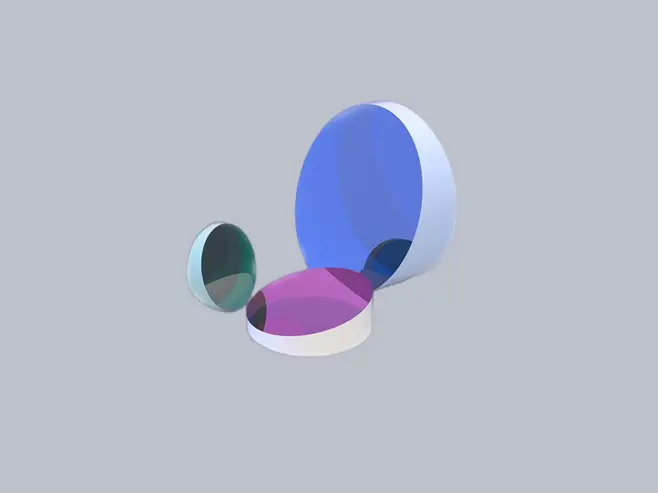

Precision Wedge Windows(Wedge Prism)

Precision Wedge Windows(Wedge Prism)

Category

Wedge windows or wedge prisms are precision optical components designed to bend, split, or redirect light with high accuracy, widely used in beam splitting, imaging, spectroscopy, and laser systems.

Description

Features

  • Made from high-quality glass, quartz, or plastic with a wedge-shaped geometry for controlled light deviation.

  • Capable of precise beam splitting, light bending, and wavelength separation.

  • Optional coatings such as anti-reflective or polarizing for enhanced performance.

Applications

  • Beam splitting in laser systems and optical instruments.

  • Adjusting magnification and depth of field in imaging and microscopy.

  • Separating light into component wavelengths for spectroscopy in chemical analysis, astronomy, and remote sensing.

Benefits

  • Enables precise control of light direction and beam angles.

  • Enhances imaging flexibility for challenging optical samples.

  • Improves optical efficiency with specialized coatings.

Performance

  • Customizable in size, material, wedge angle, and coating type.

  • Suitable for both laboratory and industrial environments requiring high precision.

Specifications

Substrate CDGM / SCHOTT
Dimensional Tolerance -0.1mm
Thickness Tolerance ±0.05mm
Surface Flatness1(0.5)@632.8nm
Surface Quality 40/20
Edges Ground , 0.3mm max. Full width bevel
Clear Aperture 90%
Coating Rabs<0.5%@Design Wavelength
