Fused Silica Laser Protective Window

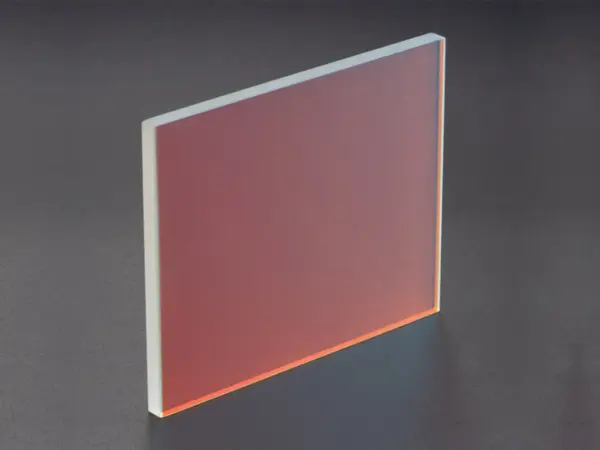

A fused silica laser protective window is an optical component designed to protect sensitive optics, sensors, and internal components in laser systems while maintaining reliable optical transmission. Made from UV fused silica, these protective windows offer high optical clarity, excellent thermal shock resistance, and stable performance under demanding laser operating conditions.
Jiujon Optics manufactures custom fused silica laser protective windows for industrial laser equipment, medical laser systems, optical instruments, scientific equipment, and other applications requiring a durable protective optical interface. Depending on the application, the window can be supplied with anti-reflective coatings optimized for specific laser wavelengths to reduce surface reflection and improve system transmission.
Fused Silica Laser Protective Window Specifications
Our fused silica laser protective windows are manufactured according to application requirements for dimensions, optical performance, surface quality, coating, and laser damage resistance. The standard specifications are shown below, while custom dimensions, thicknesses, edge treatments, and coating specifications are available for OEM and equipment manufacturers.
| Specification | Details |
|---|---|
| Substrate | UV Fused Silica, including Corning 7980, JGS1, and Ohara SK1300 |
| Dimensional Tolerance | ±0.1 mm |
| Thickness Tolerance | ±0.05 mm |
| Surface Flatness | 1 (0.5) @ 632.8 nm |
| Surface Quality | 40/20 or better |
| Edges | Ground, 0.3 mm maximum full-width bevel |
| Clear Aperture | 90% |
| Centering | <1′ |
| Coating | Rabs <0.5% @ design wavelength |
| Laser Damage Threshold | 10 J/cm² @ 532 nm, 10 ns pulse |
| Laser Damage Threshold | 10 J/cm² @ 1064 nm, 10 ns pulse |
Key Features of Fused Silica Protective Windows
High Optical Transmission
UV fused silica provides excellent transmission across a broad wavelength range, making it suitable for visible and near-infrared laser applications. This makes a fused silica protective window a practical choice for systems operating at commonly used laser wavelengths such as 532 nm and 1064 nm.
Thermal Shock Resistance
Laser processing can generate significant heat and thermal gradients around optical components. Fused silica has a low coefficient of thermal expansion and excellent resistance to thermal shock, helping the protective window maintain optical and mechanical stability during demanding operating conditions.
Laser Damage Resistance
Laser protective windows may be exposed to high-energy laser beams during operation. Proper material selection, surface quality, polishing, and coating design are important for achieving reliable laser damage resistance. Our fused silica laser protective windows can be supplied for applications requiring high laser damage threshold performance.
Protection from Contamination
A protective window creates a barrier between sensitive internal optics and the surrounding working environment. In industrial laser equipment, it can help reduce the exposure of internal optical components to dust, processing particles, smoke, and other contaminants.
This design can also simplify maintenance because the external protective window can be inspected, cleaned, or replaced without directly handling more sensitive optical components inside the laser system.
Anti-Reflective Coating Options
Anti-reflective coatings can be applied according to the required operating wavelength. A properly designed AR coating reduces surface reflection and improves transmission through the optical window.
Jiujon Optics can provide coating solutions for specific wavelength ranges and application requirements. Coating specifications can be customized according to the laser wavelength, incidence angle, substrate, and required optical performance.
Applications of Laser Protective Windows
Fused silica laser protective windows are used in a wide range of laser and optical systems where optical transmission and component protection are both important.
Laser Cutting and Welding
Laser cutting and welding equipment can generate dust, metal particles, smoke, and other contaminants during material processing. A laser protective window can help isolate internal optical components from these contaminants while maintaining the required laser transmission.
Laser Marking and Engraving
Laser marking and engraving systems require stable optical performance during continuous operation. Fused silica protective windows can be used to protect internal optics from environmental contamination and processing debris.
Medical and Aesthetic Laser Systems
Medical and aesthetic laser equipment requires reliable optical components for controlled laser delivery. Fused silica windows can be integrated into optical assemblies to protect internal components while maintaining the required transmission characteristics.
Scientific and Research Instruments
Scientific instruments and research laser systems often require optical windows with controlled surface quality, flatness, transmission, and coating performance. Custom fused silica windows can be manufactured according to the optical requirements of laboratory and research equipment.
Industrial Laser Systems
Industrial laser systems used for material processing, measurement, inspection, and other applications can benefit from protective optical windows. Fused silica is suitable for applications requiring high optical transmission, thermal stability, and reliable performance.
Custom Fused Silica Optical Windows
Jiujon Optics provides custom manufacturing services for fused silica optical windows and laser protective windows. Depending on the application, we can support customized dimensions, thicknesses, surface quality, flatness, clear aperture, edge processing, and optical coatings.
Customers can provide the required window dimensions, substrate, laser wavelength, coating requirements, laser power or pulse energy, beam diameter, and operating conditions. Our engineering team can evaluate the appropriate optical material and coating configuration based on the application requirements.
For OEM projects, custom optical windows can also be manufactured according to customer drawings and technical specifications. This allows the protective window to be integrated into existing laser optical assemblies and equipment designs.
Manufacturing and Inspection
Jiujon Optics has experience in precision optical component manufacturing, including cutting, grinding, polishing, cleaning, optical coating, and inspection. Different inspection instruments are used to control dimensional accuracy and optical performance during production.
For precision optical components, inspection can include surface quality, surface flatness, transmission, coating performance, dimensions, and other application-specific parameters. These processes help ensure that each fused silica laser protective window meets the specified technical requirements.
Why Choose Jiujon Optics?
Jiujon Optics specializes in the development and manufacture of precision optical components for laser, medical, machine vision, surveying, and other optical applications. Our product range includes optical windows, lenses, filters, mirrors, prisms, reticles, and other customized optical components.
For laser applications, we focus on optical material selection, precision surface processing, coating performance, dimensional accuracy, and inspection throughout the manufacturing process. We can supply both standard optical windows and customized fused silica laser protective windows for equipment manufacturers, optical system integrators, and industrial customers.
If you are looking for a fused silica laser protective window for a specific wavelength, laser system, or optical assembly, please contact Jiujon Optics with your required dimensions, substrate, coating wavelength, and laser operating conditions. Our team can help evaluate a suitable optical window configuration for your application.
