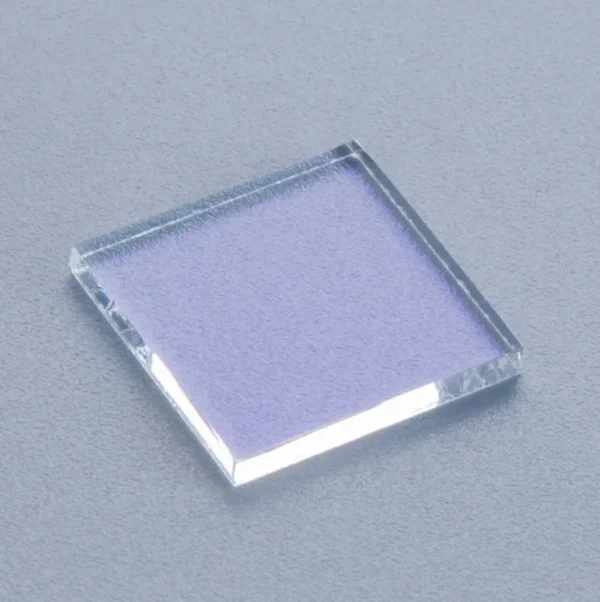

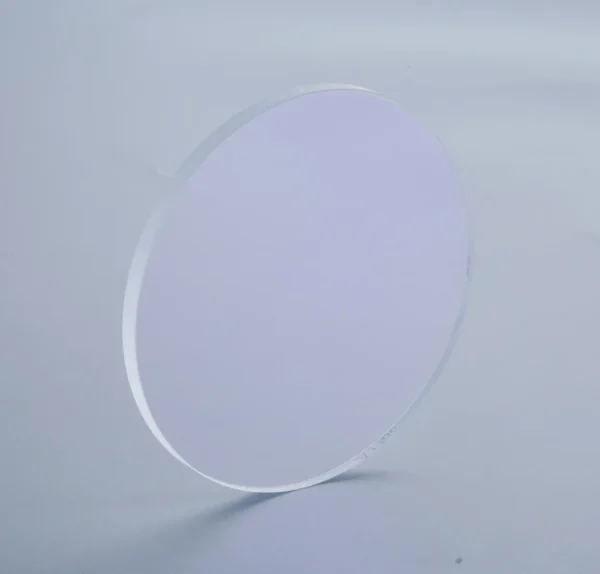

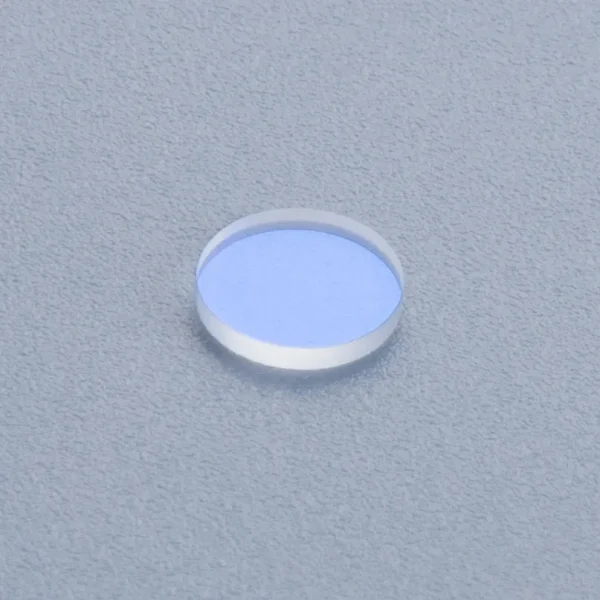

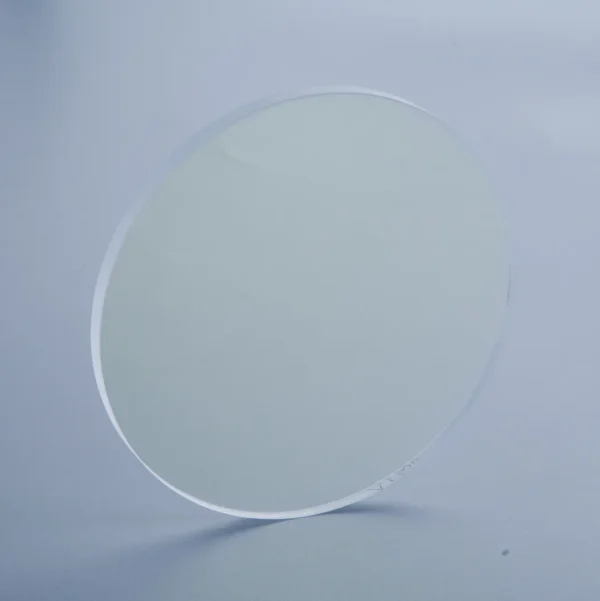

Anti-Reflect Coated on Toughened Windows

Anti-reflect coated on toughened windows are precision optical windows designed to combine high optical transmission, reduced surface reflection, and improved mechanical durability. By applying an anti-reflective (AR) coating to toughened glass, these optical windows help minimize reflection losses while maintaining reliable performance in demanding operating environments. Jiujon Optics manufactures custom toughened optical windows for applications that require clear transmission, controlled reflection, and consistent dimensional accuracy.

Features of Anti-Reflect Coated on Toughened Windows

Anti-reflect coated on toughened windows use multilayer optical coatings to reduce surface reflection at the specified design wavelength. Depending on the application, coating materials and coating structures can be customized to achieve the required transmission and reflection performance.

The toughened glass substrate provides improved mechanical strength compared with standard untreated glass. This makes the optical window suitable for equipment that may experience vibration, handling, temperature variation, or other demanding operating conditions.

Key features include:

• Anti-reflective coating for reduced surface reflection
• High optical transmission at the design wavelength
• Toughened glass construction for improved durability
• Surface quality of 40/20
• Surface flatness up to 1(0.5) @ 632.8 nm
• Clear aperture of 90%
• Parallelism below 30 arcsec
• Coating reflectance of Rabs <0.3% at the design wavelength
• Custom substrate, dimensions, thickness, and coating specifications available

Optical Performance and AR Coating

The main function of an anti-reflective optical coating is to reduce the amount of light reflected from the glass surface. Conventional uncoated glass can produce unwanted reflections that reduce transmitted light and create glare, ghost images, or contrast loss in optical systems.

With a properly designed AR coating, anti-reflect coated on toughened windows can provide improved light transmission and clearer optical performance. The coating structure can be designed according to the required wavelength range, angle of incidence, and application environment.

For imaging systems, lower surface reflection can help improve image contrast and reduce unwanted optical artifacts. For sensors and measurement equipment, increased transmitted light can also contribute to more reliable signal detection.

Toughened Optical Windows for Demanding Applications

The combination of toughened glass and AR coating makes these windows suitable for optical systems where both durability and optical performance are important. The toughened substrate helps the window withstand mechanical handling and demanding environments, while the AR coating improves transmission and reduces reflection.

These toughened optical windows can be manufactured in customized sizes and thicknesses according to the requirements of the optical system. Edge processing, clear aperture, surface quality, flatness, parallelism, and coating specifications can also be controlled during production.

Jiujon Optics supports custom optical window manufacturing for OEM and industrial applications, including prototype development and volume production.

Applications of AR Coated Toughened Glass Windows

AR coated toughened glass windows are suitable for a wide range of optical and optoelectronic systems. Typical applications include:

• Cameras and imaging systems
• Machine vision equipment
• Medical and diagnostic instruments
• Optical sensors
• Automotive optical systems
• Projectors and display systems
• Photovoltaic equipment
• Industrial inspection equipment
• Laser and optical measurement systems
• Consumer electronics

For imaging applications, the AR coating helps reduce glare and improve image clarity. In sensor systems, reduced reflection can increase the amount of useful light reaching the detector. In industrial equipment, the toughened glass structure provides additional durability for optical components exposed to demanding conditions.

Specifications

The standard specifications of these anti-reflect coated on toughened windows include a dimensional tolerance of -0.1 mm and a thickness tolerance of ±0.05 mm. Surface flatness can reach 1(0.5) @632.8 nm, with surface quality of 40/20. The edges are ground with a maximum full-width bevel of 0.3 mm.

The clear aperture is 90%, while parallelism is controlled below 30 arcsec. The AR coating can achieve an absolute reflectance of Rabs <0.3% at the design wavelength.

The substrate can be customized according to the optical system and application requirements. Coating wavelength, dimensions, thickness, and other optical specifications can also be customized for OEM projects.

Custom Optical Window Manufacturing

Jiujon Optics provides custom optical windows for customers requiring specific optical, mechanical, and coating performance. Our manufacturing capabilities cover optical glass processing, precision grinding and polishing, cleaning, coating, inspection, and final quality control.

During production, optical windows can be inspected using professional optical measurement equipment to verify surface quality, flatness, coating performance, and dimensional requirements. Our [Coating Equipment] and [Surface Processing Equipment] support the production of precision optical components for industrial and OEM applications.

For customers developing a new optical system, we can evaluate the required substrate, dimensions, surface quality, coating wavelength, transmission requirements, and environmental conditions before production.

Why Choose Jiujon Optics

Jiujon Optics specializes in custom optical components, including optical windows, lenses, filters, mirrors, prisms, and reticles. Our anti-reflect coated toughened windows are manufactured according to customer specifications and can be adapted to different optical systems and operating environments.

Whether you need a prototype quantity or a production volume, our engineering team can support the optical window design, material selection, coating specification, manufacturing, and inspection process.

If you are looking for anti-reflect coated on toughened windows for a camera, sensor, medical device, machine vision system, or other optical equipment, contact Jiujon Optics with your drawings or technical requirements for a customized quotation.
