Description

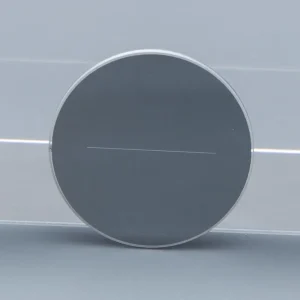

Chrome on glass reticles are precision optical components designed for alignment, measurement, calibration, targeting, and image reference applications. Manufactured on optical glass substrates with precision chrome patterns, these reticles provide clear, high-contrast reference markings for optical instruments and imaging systems.
Jiujon Optics manufactures custom chrome on glass reticles according to application-specific requirements, including substrate material, reticle pattern, line width, dimensions, coating characteristics, and clear aperture. The combination of precision glass processing and chrome patterning allows the reticle to be integrated into demanding optical assemblies where dimensional accuracy and pattern consistency are important.
Features of Chrome on Glass Reticles
- Precision chrome patterns manufactured on optical glass substrates
- High-contrast markings for clear optical reference

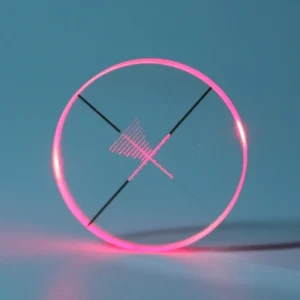

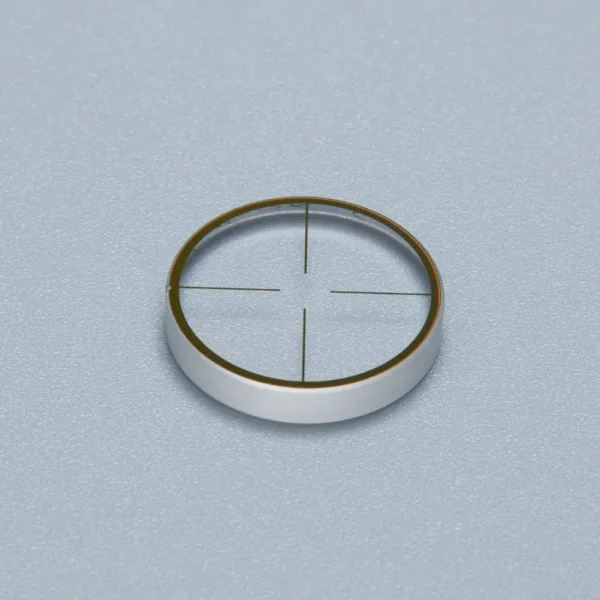

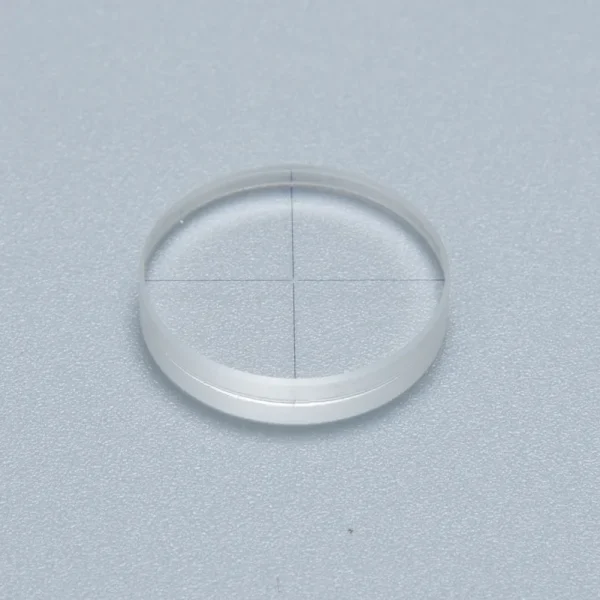

- Fine lines, grids, scales, crosshairs, and application-specific patterns available
- Custom dimensions and pattern layouts according to customer drawings
- Suitable for optical alignment, measurement, calibration, and imaging systems
- Optical glass substrates available for different application requirements
- Chrome coating can be configured for the required optical transmission and contrast
- Precision processing supports repeatable pattern dimensions and positioning
Applications
Chrome on glass reticles are used in a variety of optical and optoelectronic systems where a stable reference pattern is required.
Typical applications include:
- Optical instruments and measurement equipment
- Microscope and imaging system calibration
- Surveying and alignment instruments
- Machine vision and optical inspection systems
- Laser alignment and positioning equipment
- Scientific and analytical instruments
- Targeting and aiming optical systems
- Custom OEM optical assemblies

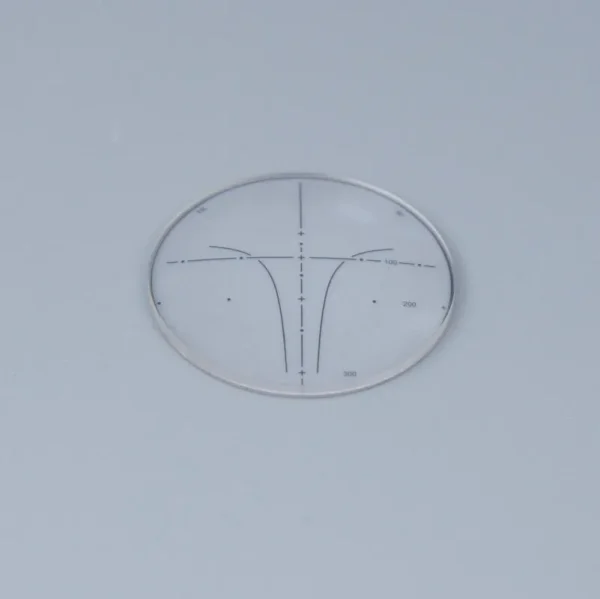

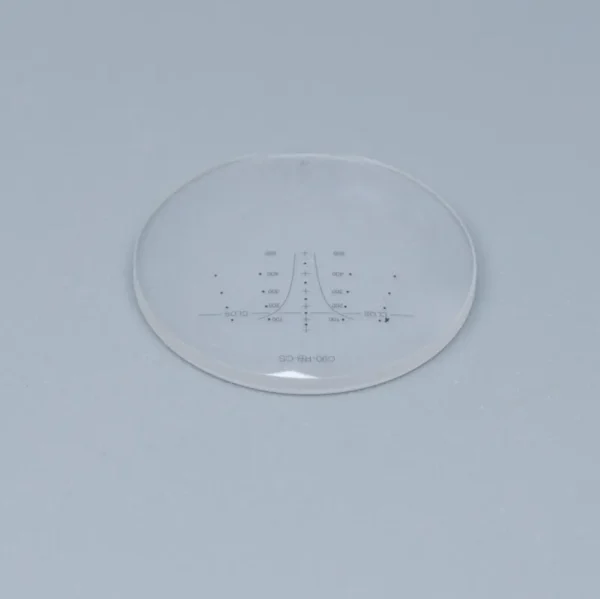

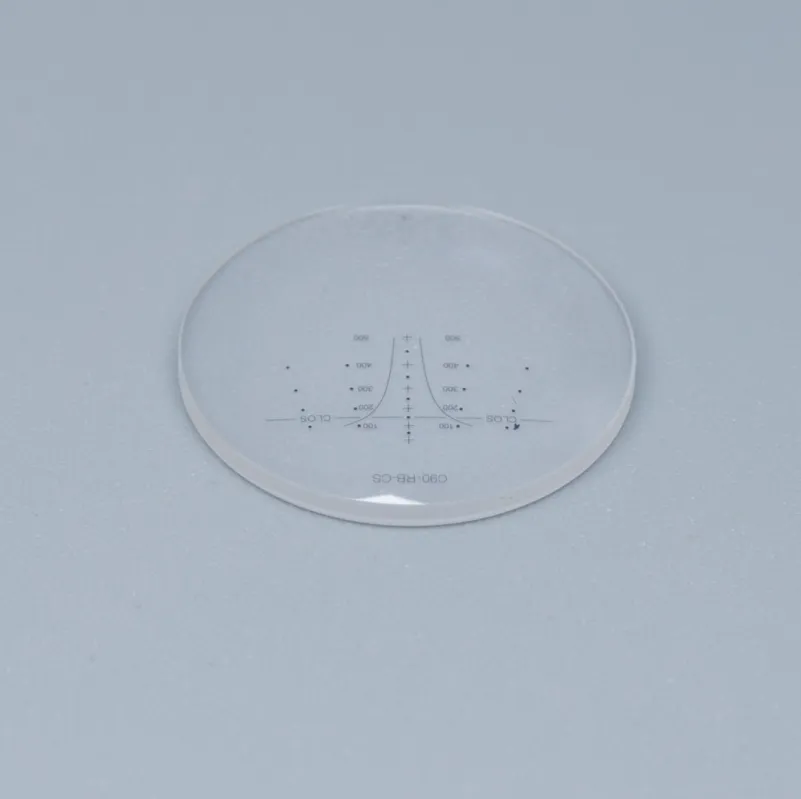

For measurement and calibration applications, reticles can incorporate scales, crosshair patterns, grids, reference marks, or other customer-defined geometries. Pattern dimensions and positioning can be customized to match the optical design of the instrument.
Precision Reticle Manufacturing
The manufacturing process combines optical glass processing with precision pattern formation. Depending on the application, Jiujon Optics can provide glass cutting, grinding, polishing, cleaning, chrome coating, pattern processing, and optical inspection.

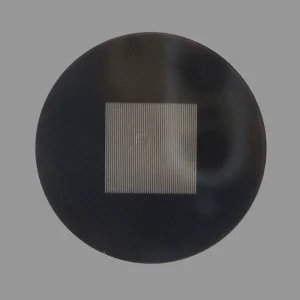

Chrome-coated areas can be designed to provide high optical density, while transparent areas allow light transmission through the required portions of the reticle pattern. This structure enables the reticle to provide a defined visual reference without unnecessarily affecting the optical path.
For OEM projects, customers can provide drawings or technical specifications covering the overall dimensions, substrate, thickness, pattern geometry, line width, tolerance, and optical requirements. Jiujon Optics can then manufacture the reticle according to the specified design.
Specifications
| Parameter | Typical Specification |
|---|---|
| Substrate | B270 / N-BK7 / H-K9L or other optical glass |
| Dimensional Tolerance | ±0.1 mm or according to drawing |
| Thickness Tolerance | ±0.05 mm or according to drawing |
| Surface Quality | Application dependent |
| Surface Flatness | Application dependent |
| Pattern | Crosshair, scale, grid, line, custom pattern |
| Line Width | Custom according to application |
| Clear Aperture | Typically ≥90% |
| Chrome Coating | High optical density opaque chrome |
| Pattern Accuracy | According to customer drawing |
| Coating / AR | Available according to optical requirements |
Actual specifications can be customized according to the optical system, wavelength range, pattern geometry, and mechanical interface.
Custom Chrome Reticles for OEM Applications
Different optical instruments require different reticle patterns and dimensional configurations. Jiujon Optics supports custom chrome on glass reticles for OEM and low-to-volume production projects.
Customers can specify the optical glass, overall dimensions, thickness, pattern geometry, line width, clear aperture, coating requirements, and dimensional tolerances. Sample development and production quantities can be discussed according to project requirements.
If you are developing an optical instrument, calibration system, machine vision device, surveying instrument, or other precision optical assembly, send us your drawing or technical requirements for evaluation and quotation.
