Description
Features

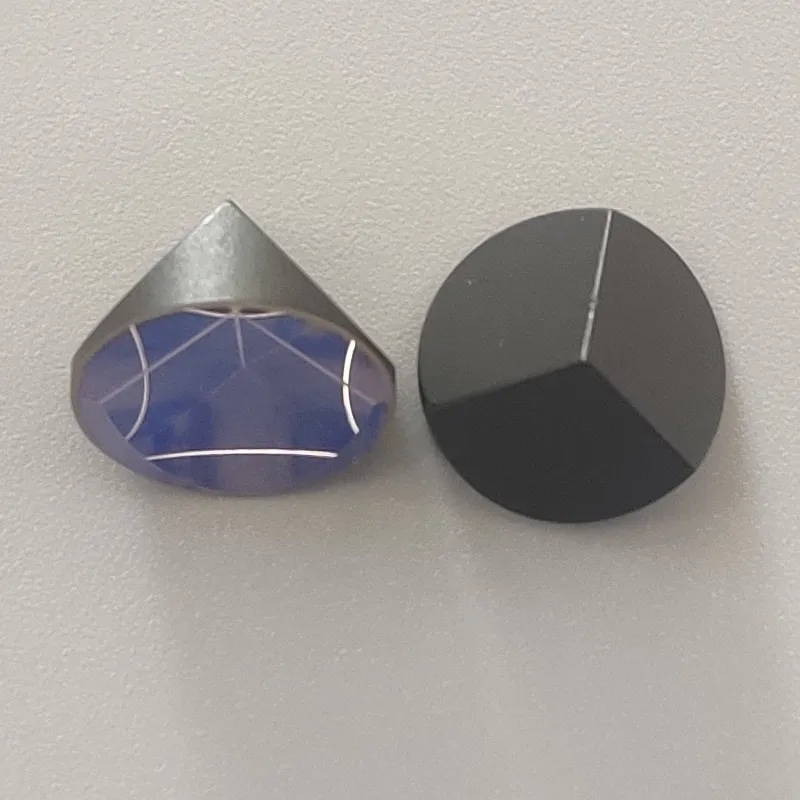

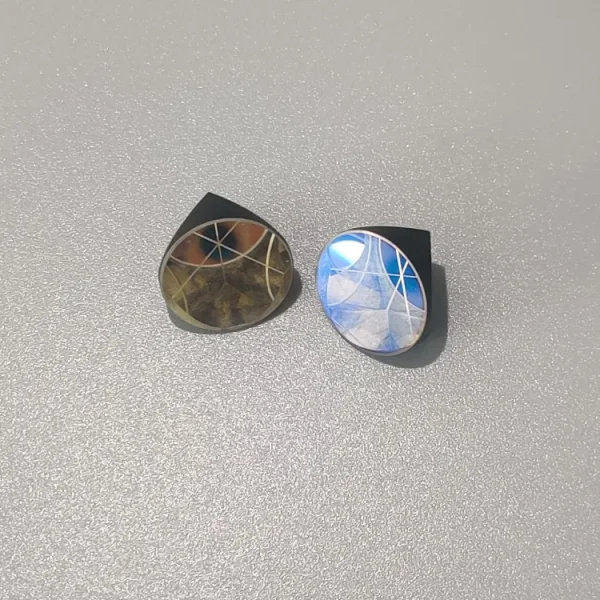

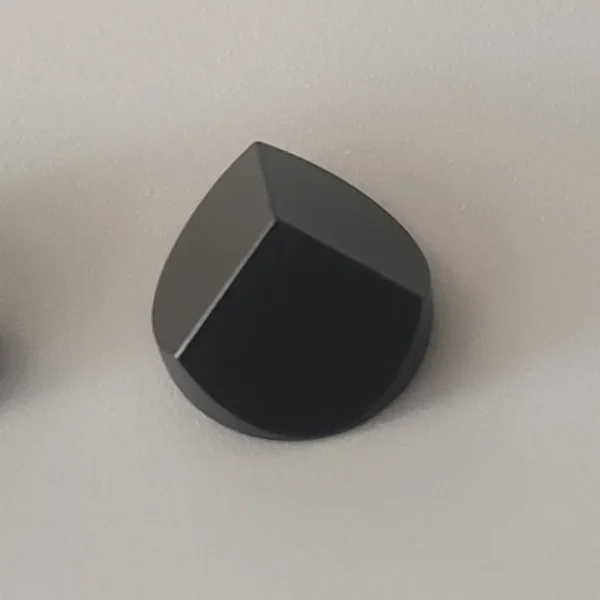

- Three surfaces coated with silver and protective black paint for durability
- One surface with anti-reflection (AR) coating to reduce glare and unwanted reflections
- Precision-engineered geometry ensures accurate beam reflection
- High-quality optical materials for superior performance in clinical environments
Applications
- Fundus imaging systems in ophthalmology
- Medical diagnostic imaging in hospitals and clinics
- Research facilities and academic institutions focusing on ocular studies
- Integration in advanced imaging systems requiring precise optical reflection
Benefits
- Enhanced image clarity and contrast for accurate diagnosis
- Reliable and durable performance in demanding clinical settings
- Minimizes reflections and glare for consistent imaging quality
- Improves overall efficiency and functionality of fundus imaging systems
Performance
- Maintains optical integrity under repeated clinical use
- AR coating ensures maximum light transmission and minimal reflection
- Robust construction suitable for long-term operation
- Precision reflection geometry guarantees consistent, high-quality imaging

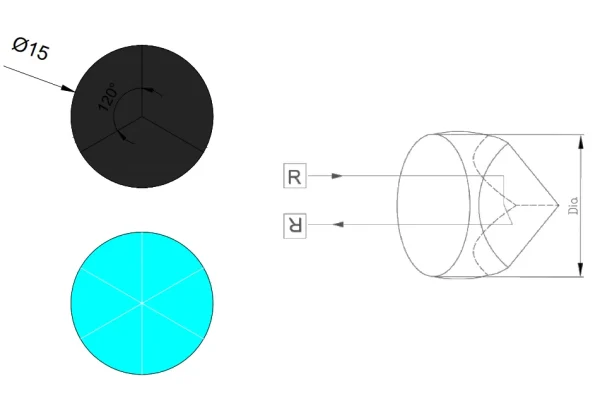

Specifications
| Substrate | H-K9L / N-BK7 /JGS1 or other material |
| Dimensional Tolerance | ±0.1mm |
| Surface Flatness | 5(0.3)@632.8nm |
| Surface Quality | 40/20 |
| Chips | 90% |
| Beam Deviation | <10arcsec |
| AR Coating | Ravg<0.5% @ 650-1050nm, AOI=0° Silver Coating: Rabs>95%@650-1050nm on reflect surfaces |
| Reflect Surfaces | Black Painted |
