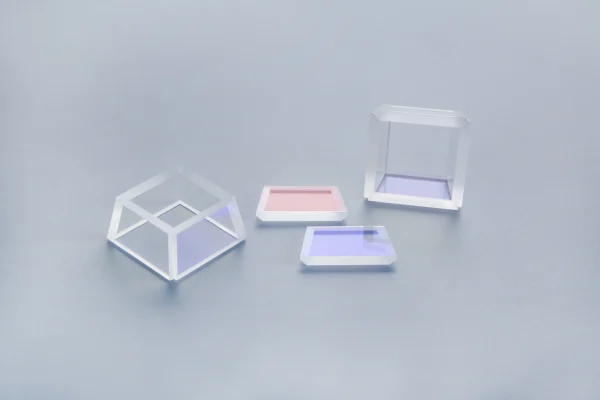

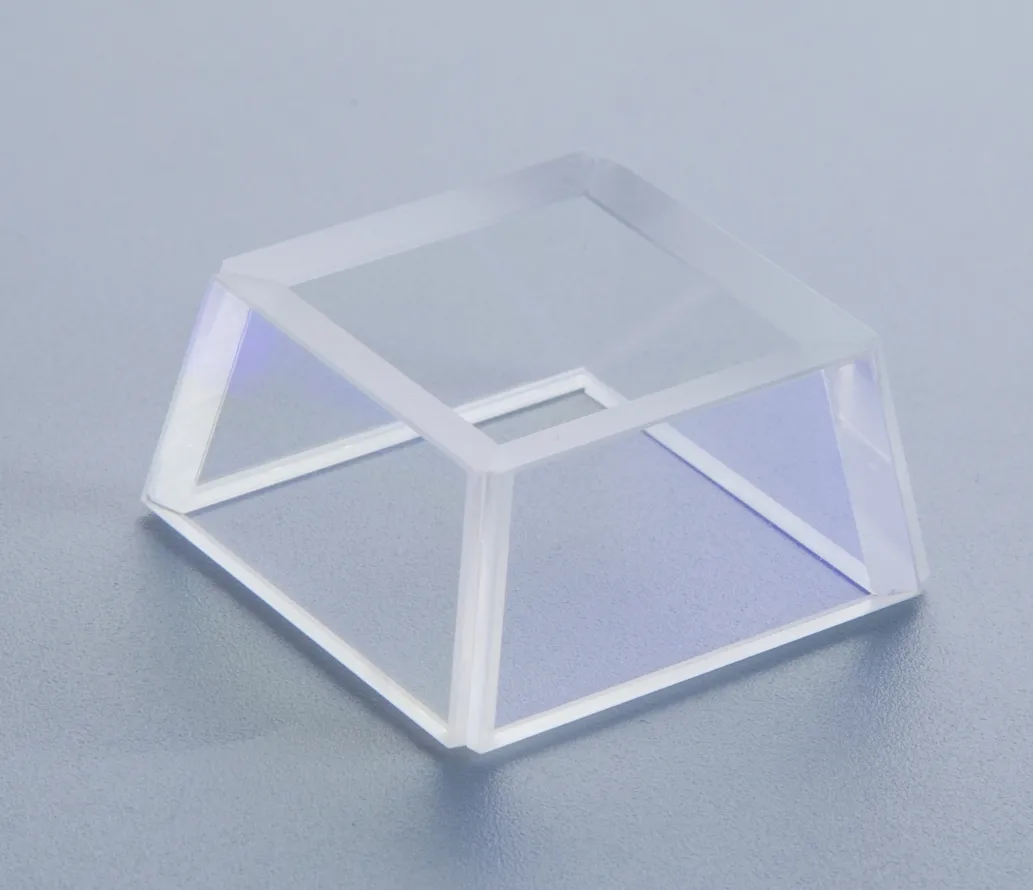

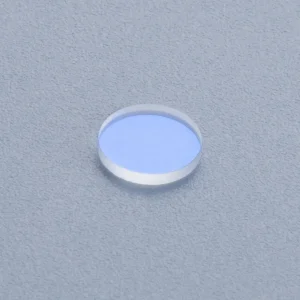

Assembled Window for Laser Level Meter

Assembled Window for Laser Level Meter

Category

Assembled optical windows for laser levels are designed to deliver high precision in distance and height measurements, combining durable bonding with anti-reflective coatings for maximum optical clarity and reliability in demanding environments.

Description

Features

  • Made from high-precision polished optical glass with minimal surface roughness to ensure unobstructed laser transmission.

  • Equipped with anti-reflective (AR) coating to reduce unwanted reflections and enhance light transmission.

  • Bonded with high-quality adhesive for secure placement and alignment stability.

Applications

  • Ideal for laser levels used in surveying, construction, and engineering tasks requiring accurate distance and height measurements.

  • Suitable for rugged and harsh environments where vibration, temperature fluctuations, and physical stress are common.

Benefits

  • Delivers clear, accurate, and reliable measurements by minimizing optical imperfections and light loss.

  • Strong adhesion prevents misalignment or displacement during use, even under challenging conditions.

  • AR coating improves measurement precision and overall device performance.

Performance

  • Resistant to vibration, extreme temperatures, and environmental stress.

  • Compatible with various laser wavelengths and customizable in size and shape to meet specific equipment needs.

Specifications

Substrate

 B270 / Float Glass

Dimensional Tolerance

 -0.1mm

Thickness Tolerance

 ±0.05mm

TWD

 PV<1 Lambda @632.8nm

Surface Quality

 40/20

Edges

 Ground , 0.3mm max. Full width bevel

Parallelism

 <10”

Clear Aperture

 90%

Coating

Rabs<0.5%@Design Wavelength, AOI=10°
